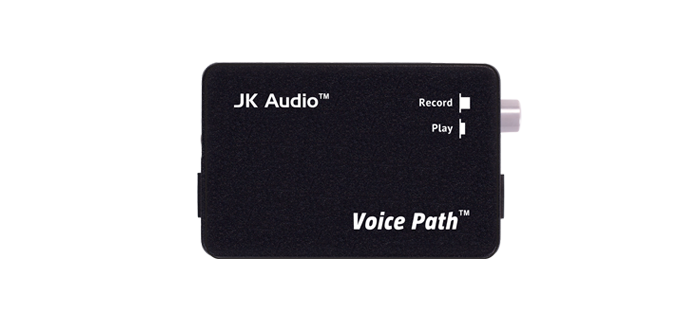

Voice Path - Telephone Handset Audio Tap
Tap Your Phone with 3.5mm Mini Jacks.
Voice Path continuously routes both sides of your conversation to the mic input of your PC (or Mac) sound card. Simply press in the gray button when you are ready to play audio recordings back into the phone line. With the button in, Voice Path will disconnect the microphone from your handset and send audio down the phone line and into your receiver. You will hear the transmit audio as well as the voice from the other end of the call.
Record and Play Audio Clips
Endless possibilities such as: News rooms, Weather and Traffic reports, Ad Creation and Proofing, Transcribing, Voice Mail Prompts, Production Room…Simply connect between the handset and base of your telephone. The attached cables connect directly to the in and out jacks of your sound card. Use your PC software to record, edit, and then play your conversation right back into the phone line.
When sending audio into a telephone, Voice Path must emulate the microphone that is in the handset. A switch on the back of Voice Path allows you select between the three basic types of handset microphone: electret, dynamic, and carbon. Signal level to the PC sound card is also adjustable. Voice Path will not work with telephones that have a keypad in the handset.
|Input – Left Channel Only||1/8″ (3.5mm) Mono|
|Level||250 mV nominal|
|Output||1/8″ (3.5mm) Mono|
|Level||100 mV max|
|Handset Type||Electret, Dynamic, Carbon|
|Handset and Telephone Connectors||RJ22|
|Handset Cable||18″ Flat Cable (Provided)|
|Size||3″ x 1″ x 2″ (7.6 x 2.5 x 5.1 cm)|
